Skinlite DE-500 Dermatoscope

The DE-500 Dermatoscope is a medical microscope designed for skin lesion diagnosis. With enhanced polarised lighting system, equipped with polarised, non polarised, 365nm UV light and magnetic phone adapter.

The DE-500 is the best smartphone dermatoscope for skin lesion photography.

Key Features

10 x Magnification
25mm wide field of view (Aperture)

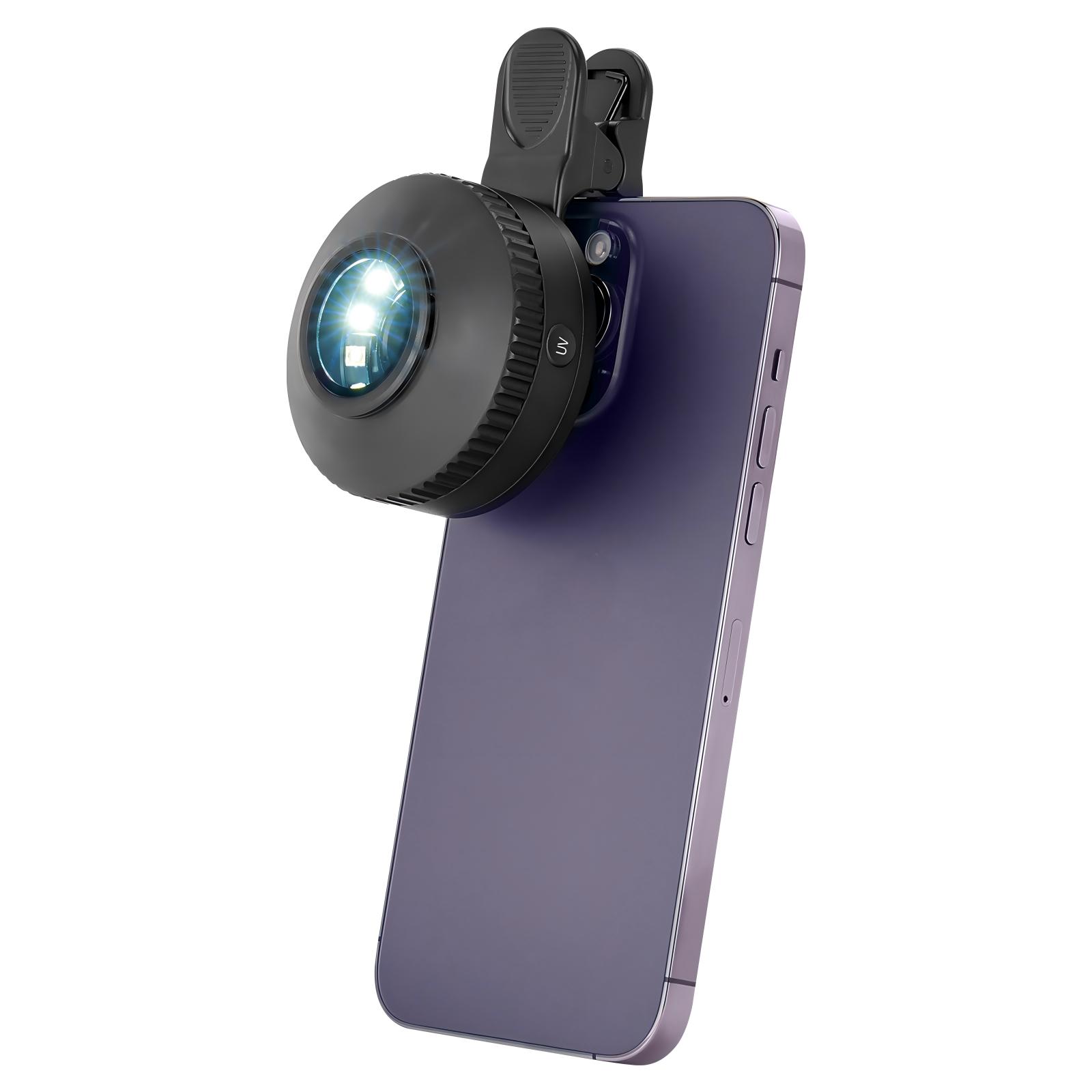

Polarised & non-polarised & 365nm UV light

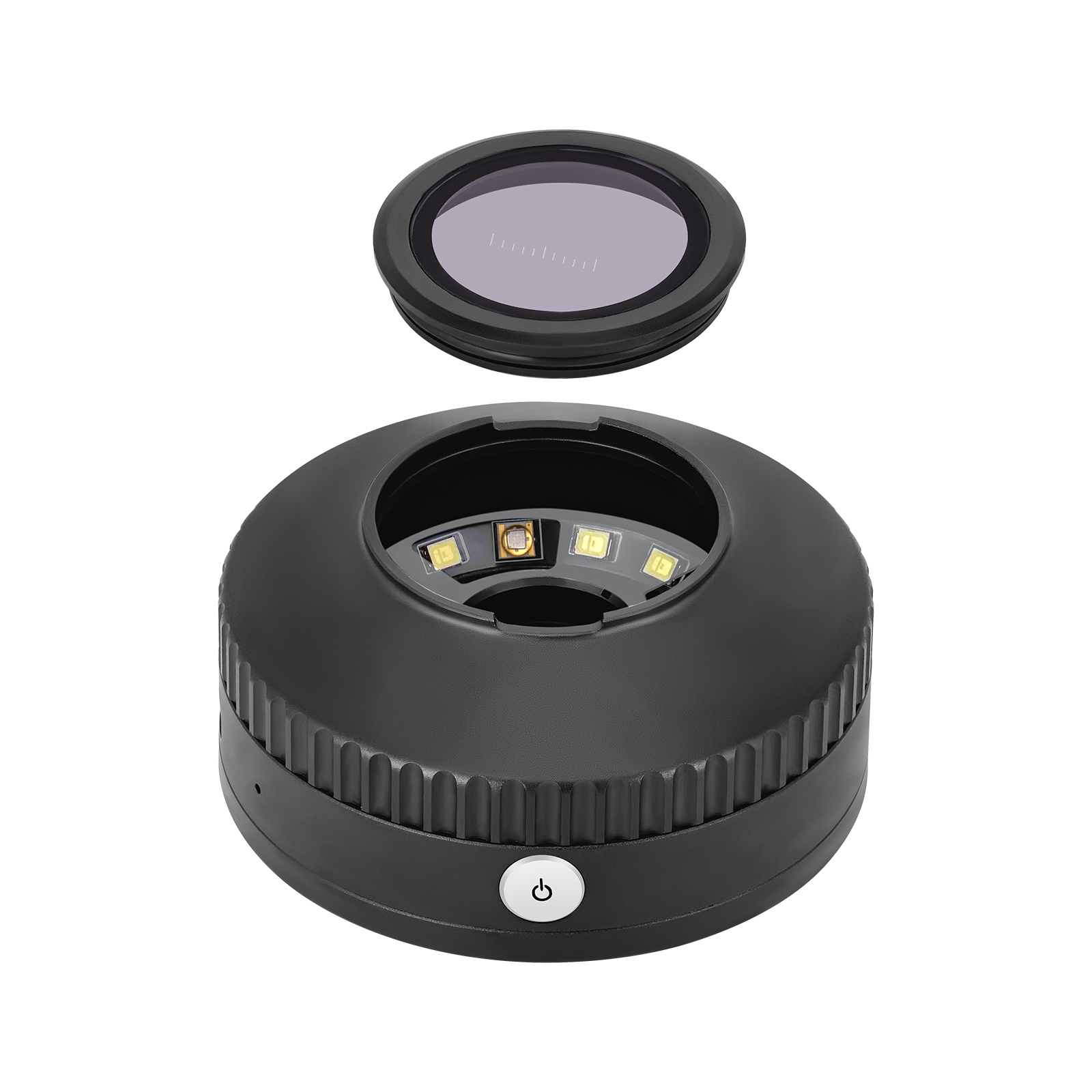

Detachable protective glass
Automatic shutdown

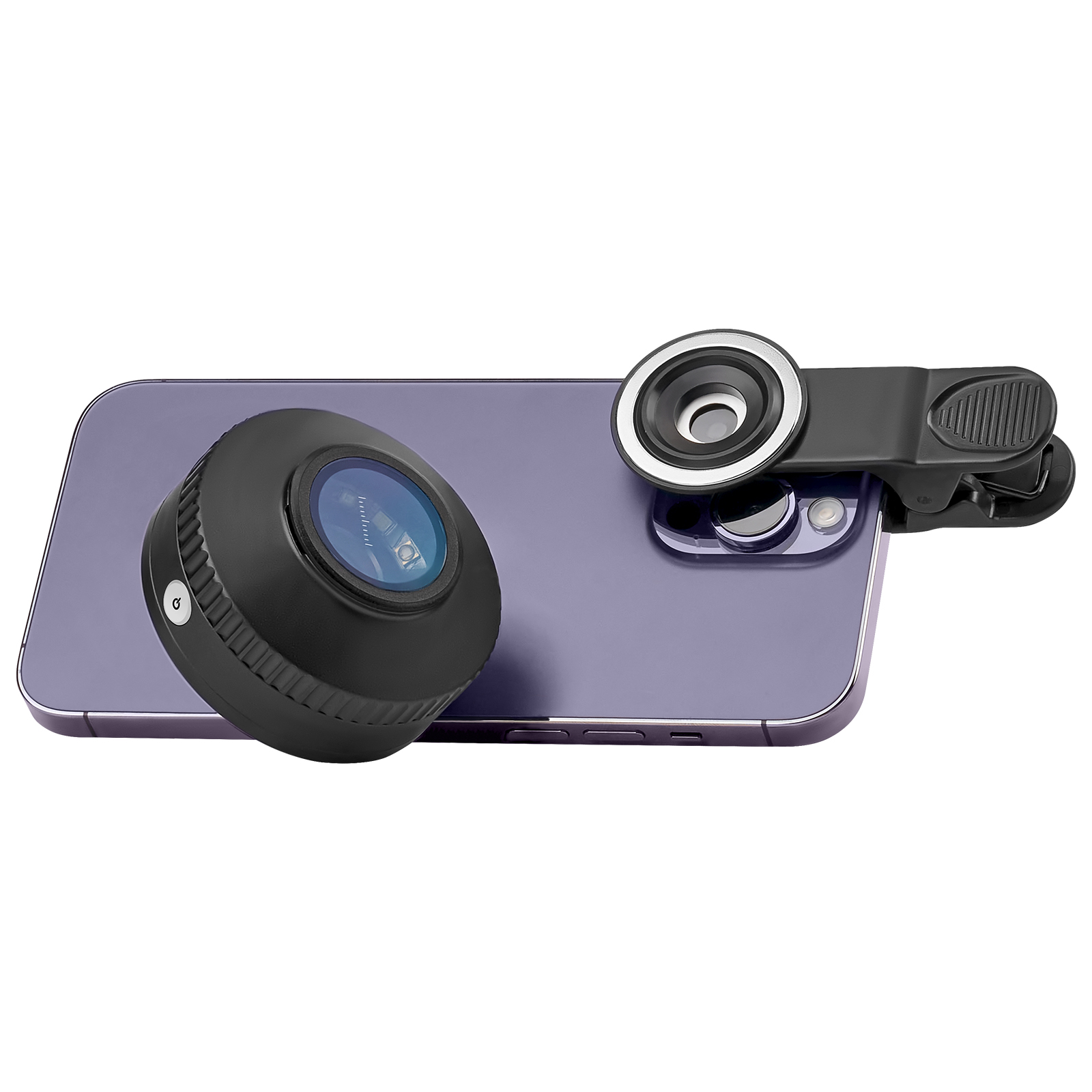

Magnetic Phone Adapter
25-30mm Close Focus
All-metal housing

DOWNLOAD USER MANUAL

Contact us for pricing.

Contact Us

Material	Aluminium & Glass
Optical Design	All glass, 4 elements 3 groups, anti-reflection coating
Lens Diameter	25mm(front); 15mm(rear)
Magnification	10x
Distortion	5%
Polarization	Cross Polarization
Resolution	300 LP/MM (Axis) 280 LP/MM (Edges)
LED	16 LEDs, 8 polarisation, 4 non polarization, 4 365nm UV light
Ultraviolet Wavelength	365nm
Battery Capacity	300mAh Lithium ion
Charging	USB-C
Working Time	90 minutes
Focus Distance	16mm
Dimension	Φ61.5mm*H32mm
Weight	75.5g
