Derungs Opticlux – Magnifier Luminaire

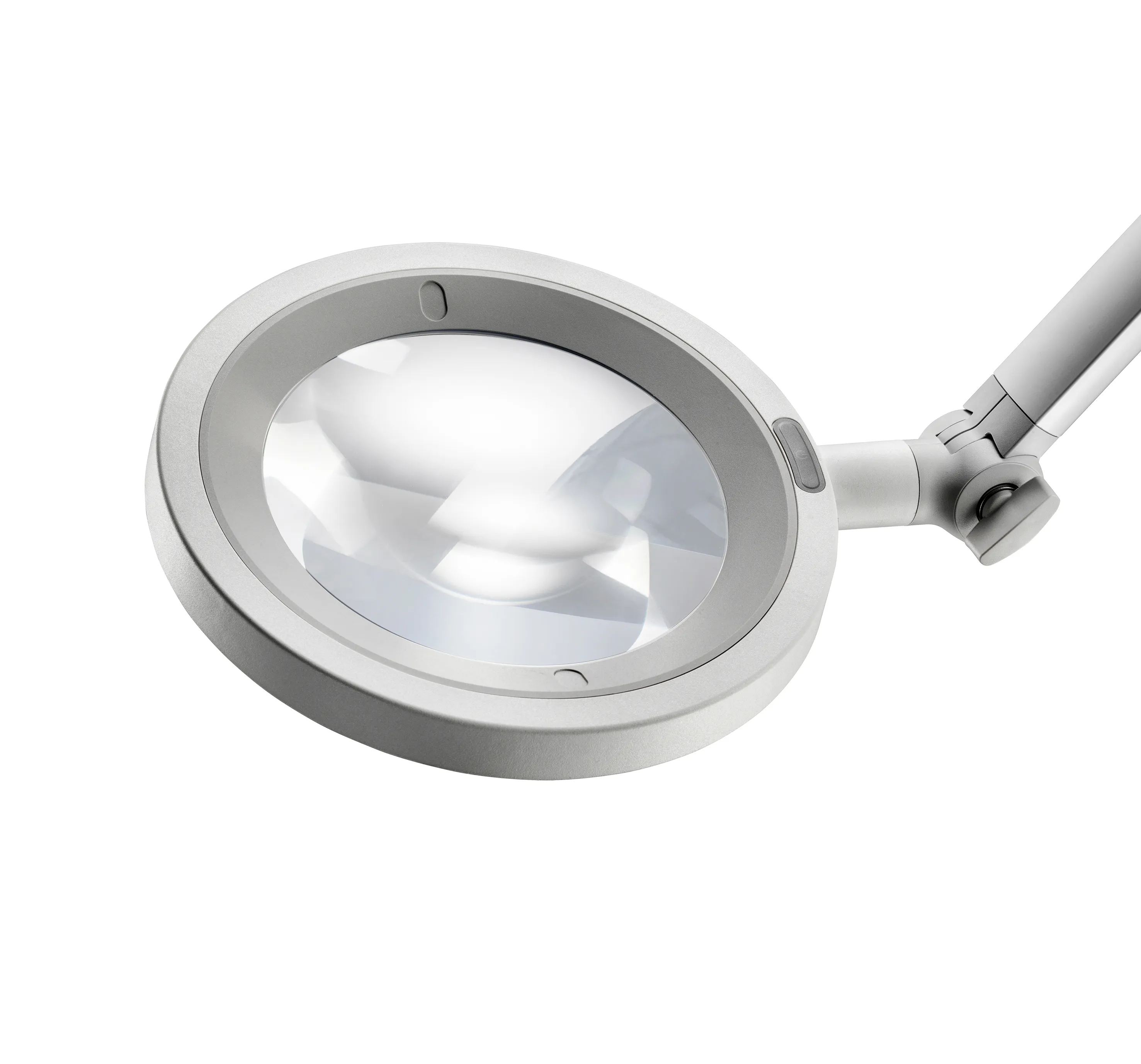

OPTICLUX magnifier luminaire – for demanding tasks

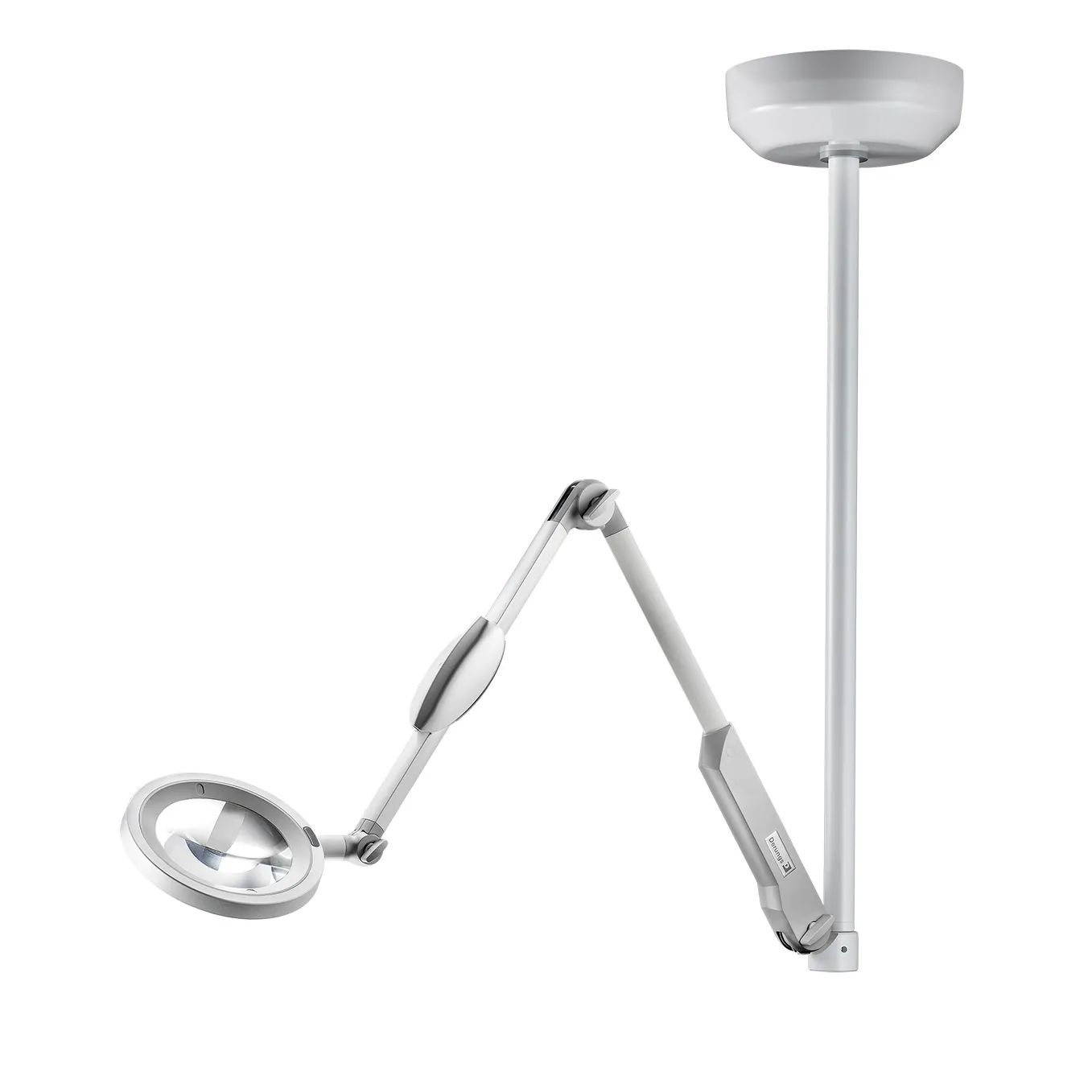

The OPTICLUX magnifier lamp with an arm system combines the best features that a magnifier in the medical workplace should have: a robust magnifying glass, durable LED modules, first-class colour rendering properties and accurately positioned arm joints.

Derungs from Switzerland, the specialist supplier of high quality, reliable and innovative medical examination lighting brings the Halux range of lighting to the medical market place.

Reddot design award winner

Contact us for pricing.

Contact Us

Share This

Ideal:
recommended for dermatology, in clinics and practices for human-, dental and veterinary purposes, in laboratories as well as for checking items to be sterilised

Perfect vision:
a dimmable, homogeneous light field with 6,000 Lux at a distance of 15 cm

Natural colour rendering:
Thanks to the first-class colour rendering properties Ra 95

Two modes, one device:
on request with Daylight mode and switchable Wood’s light
Durable: a high-quality plastic lens and precision components

Light output *

6 000 Lux @ 0.15 m

Colour temperature *

6 500 K

optional: Wood light 365 nm

Colour rendering

Ra > 95

Lens dimension

⌀ 160 mm

Operation

Membrane keypad

Standards

EN 60601-1, EN 60601-2-41



  • llumination power – 6 000 Lux @ 0.15 m**
  • Color temperature daylight white 6 500 K
  • Colour rendering CRI = 95
  • Bright, homogeneous light field
  • Continuously dimmable
  • Acrylic lens with 3.5 diopters
  • Universal fastening
  • Durable premium casing
  • Optional Wood light: peak at 365 nm

* -10 % / 20 % of tolerance
